DSD4121RV PVR Ready

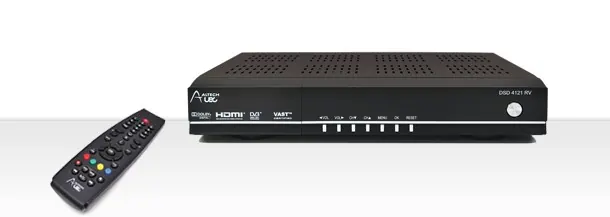

The DSD4121RV is a VAST certified High-Definition set-top box which can be used as a single tuner digital video recorder when an external hard drive ( powered externally ) is connected to it.
The USB port is used to connect this externally powered hard drive and the DSD4121RV is able to record your favorite in digital format.
Also, check our list of supported hard drives by the DSD4121 PVR ready STBand please note the HDD must be externally powered and we don't recommend the use of Thumb drives.
Key Features
- Single channel recording
- Electronic program guide bookings
- Trick modes ( play, pause, fast forward, jump back )
- Chase play
- Pause Live TV
- Playback file from HDD while recording
- Supports up to 1 TB HDD (must be externally powered)
- Playlist sorting
Technical Features
| FREQUENCY RANGE | 950 - 2150 Mhz |
|---|---|
| DVB- Standard | DVB-S2 QPSK Demodulator , 8 PSK |
| Symbol Rate ( DVB-S2 ) | 2 Msym/sec to 30 Msym/sec |
| Symbol Rate ( DVB-S ) | 2 Msym/sec to 45 Msym/sec |
| PROCESSOR CORE | |
| Host Processor | STi 7111, 450 Mhz core processor |
| Flash Memory | 16 MBytes |
| RAM | 128 MBytes |
| VIDEO | |
| Video Decoder | MPEG-4 (H.264), MPEG-2 MP@HL |
| Video Format | PAL |
| Video Outputs | 1080i, 720p, 576p, 576i |
| AUDIO | |
| Audio Decoder | Mpeg 2 layer 1&2 ( Musicam ), MPEG4 AAC/AAC+ |
| Dolby audio support | Downmix and pass through via HDMI, optical and coaxial connectors |
| CONNECTORS | |
| RF in | F- Type |
| HD video | HDMI |
| SD Video | Composite video and Component video |
| Digital Audio | Optical , Coaxial and HDMI |
| Analogue Audio | RCA Left & Right |
| USB | USB 2.0 for PVR function |
| Serial Connector | 9 pin D-type for software upgrades |
| Smart Card | ISO 7818 |
| Ethernet | RJ45 |
| Power Supply | Detachable fig 8 cable |
